Turn on the Ventiflow and connect to the app*. Enter the location data and if you are measuring a supply or extract vent. Then blow against the impeller to check it turns correctly. *It is strongly advised to use the Acin VentiFlow app for taking measurements although it can be done without using the app. Both methods are fully described in the instruction manual.
Ventilation flow rate testing made easy
Accurate ventilation flow measurement
The easy to use VentiFlow-mk2 allows you to quickly check and balance ventilation systems with results in the matter of seconds.
How to measure flow rates
The VentiFlow-mk2 can easily measure air flow producing results in as little as 5 seconds.
Setup the equipment
Take the reading

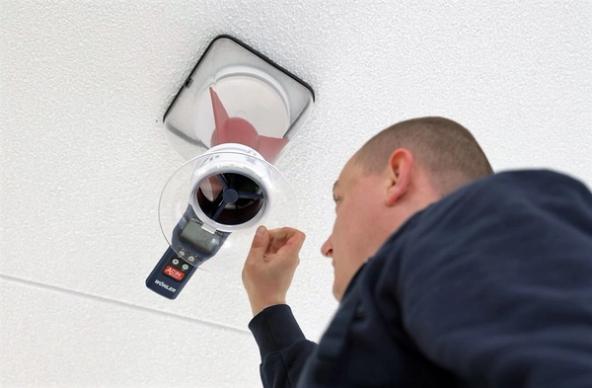

Place the measuring cone over the vent to be measured applying a light pressure, please note the air inlet or outlet to be measured must be completely enclosed by the cone. Wait for the measurement value to stabilise then press the measurement value to capture it.
Look at the results
Press save to complete the measurement. An excel file will be created with an overview of the measurements. If you are measuring multiple vents you can take all measurements and then save for them all to appear on the same excel file.
